Litz Wire

Single FEP Insulation

Single FEP Insulation

Product Information

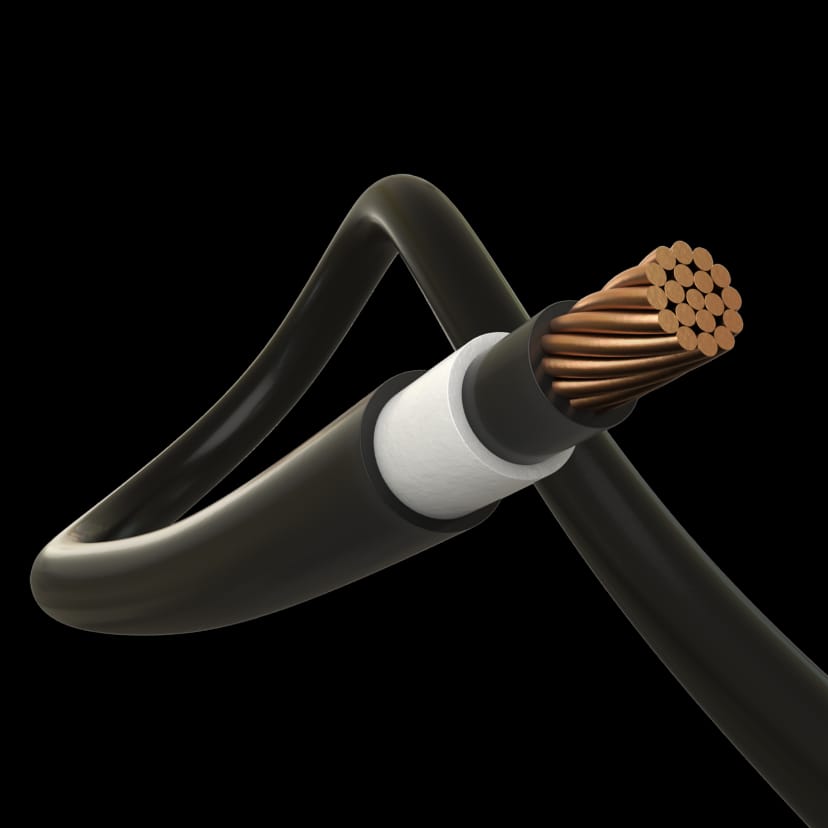

Single insulated Litz wire combines the benefits of traditional Litz wire construction with FEP insulation properties, making it ideal for high-frequency applications. FEP insulation provides excellent chemical resistance, high temperature performance, and superior electrical properties.

Wire Specifications

SXXL825/44FX-3(MWXX)
15
0.082
3,300
825
44
0.088
400-850 khz
SXXL120/38FX-3(MWXX)
18
0.057
1,920
120
38
0.063
50-100 khz
SXXL550/44FX-3(MWXX)
17
0.062
2,200
550
44
0.068
400-850 khz
SXXL100/38FX-3(MWXX)
18
0.052
1,600
100
38
0.058
50-100 khz
SXXL07/28FX-2(MWXX)
20
0.041
1,111
7
28
0.045
60hz-1 khz
SXXL07/28FX-3(MWXX)
20
0.041
1,111
7
28
0.047
60hz-1 khz
SXXL66/38FX-2(MWXX)
20
0.042
1,056
66
38
0.046
50-100 khz
SXXL66/38FX-3(MWXX)
20
0.042
1,056
66
38
0.048
50-100 khz
SXXL360/44FX-3(MWXX)
19
0.05
1,440
360
44
0.056
400-850 khz
SXXL20/34FX-2(MWXX)
22
0.037
794
2
34
0.041
20 khz

Please Note: For detailed specifications including breakdown voltage and other technical parameters, please request a specification sheet. Contact our Sales Department for additional constructions and custom requirements.
