Litz Wire

Triple TCA3 Insulation

Triple TCA3 Insulation

Product Information

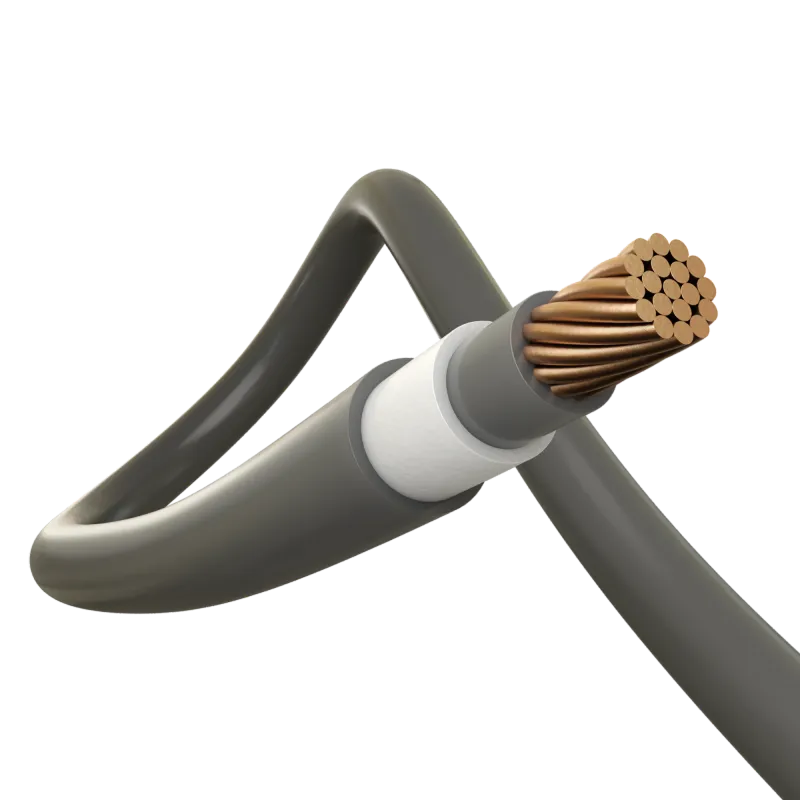

Triple insulated TCA3 Litz wire combines the benefits of traditional Litz wire construction with enhanced modified ETFE insulation properties, making it ideal for high-frequency applications requiring reinforced insulation. The TCA3 construction provides excellent chemical resistance, high temperature performance, and superior electrical properties.

Wire Specifications

TCA3 7/30 LITZ (MWXX)
22
0.033
700
7
30
0.042
1-10 kHz
TCA3 40/40 LITZ (MWXX)
25
0.026
384
40
40
0.035
100-200 kHz
TCA3 7/32 LITZ (MWXX)
24
0.026
448
7
32
0.035
10 kHz
TCA3 19/40 LITZ (MWXX)
28
0.018
183
19
40
0.027
100-200 kHz
TCA3 5/32 LITZ (MWXX)
25
0.024
320
5
32
0.033
10 kHz
TCA3 16/44 LITZ (MWXX)
32
0.011
64
16
44
0.02
400-850 kHz
TCA3 150/44 LITZ (MWXX)
23
0.035
600
150
44
0.044
400-850 kHz
TCA3 09/35 LITZ (MWXX)
26
0.022
282
9
35
0.031
20-50 kHz
TCA3 135/38 LITZ (MWXX)
17
0.06
2,160
135
38
0.069
50-100 kHz
TCA3 25/38 LITZ (MWXX)
24
0.026
400
25
38
0.035
50-100 kHz

Please Note: For detailed specifications including breakdown voltage and other technical parameters, please request a specification sheet. Contact our Sales Department for additional constructions and custom requirements.
