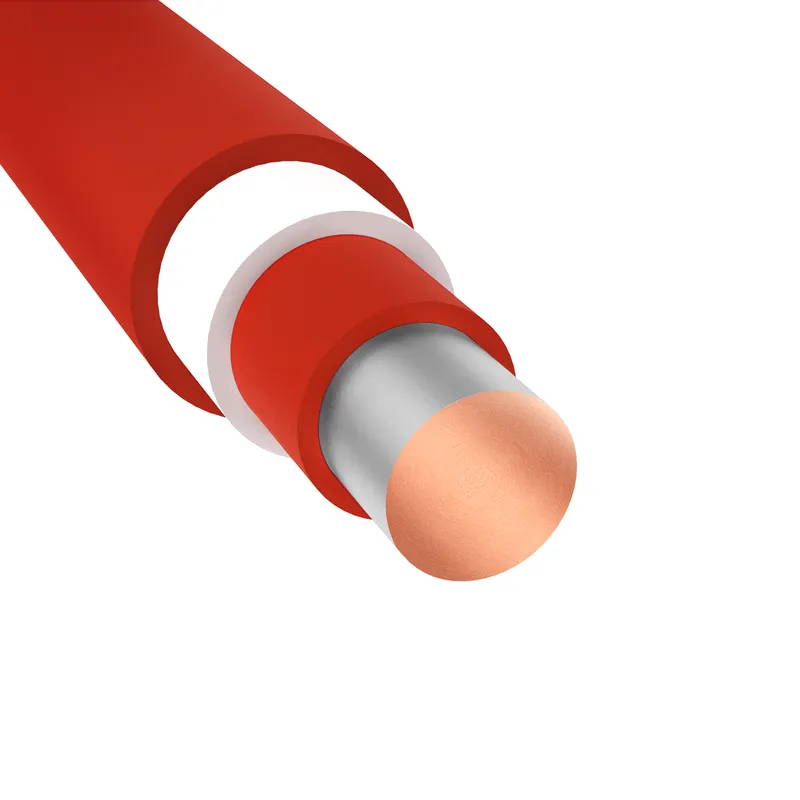

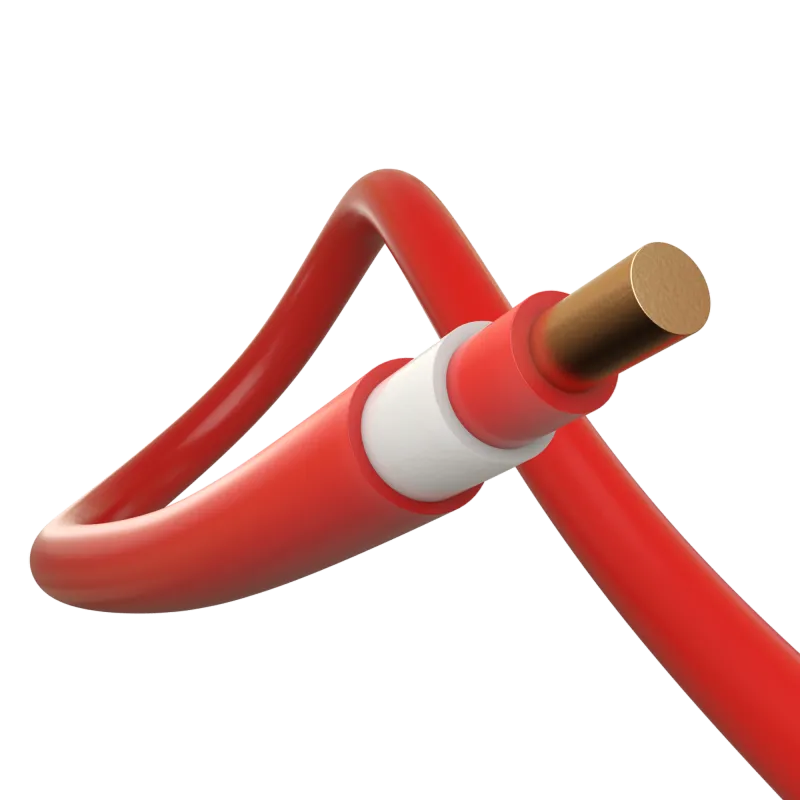

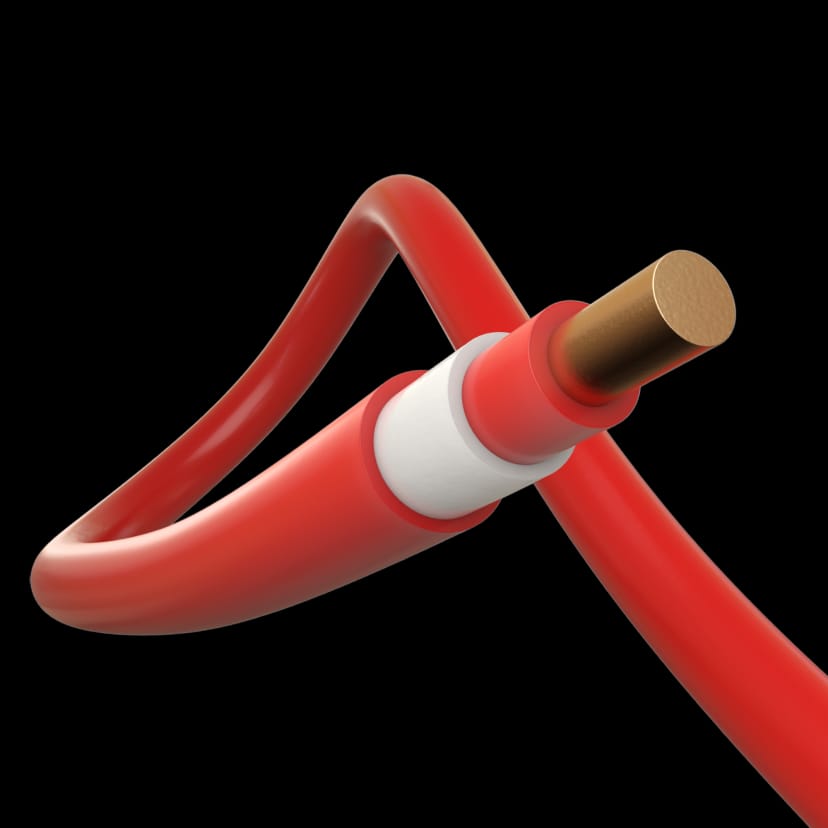

Triple Insulated

ETFE .001"/Layer

ETFE .001"/Layer

Product Information

Chemours Tefzel® ETFE insulated wire provides excellent chemical resistance, high temperature performance, and superior electrical properties. With a thin wall construction of .001"/layer, it offers the thinnest TIW available on the market while maintaining high dielectric strength and mechanical durability.

Wire Specifications

CONDUCTOR
NOMINAL O.D.
T20A01TXXX-1200.03200.8130.03800.9653.33
T21A01TXXX-1210.02850.7240.03450.8762.68
T22A01TXXX-1220.02530.6430.03130.7952.14
T23A01TXXX-1230.02260.5740.02860.7261.73
T24A01TXXX-1240.02010.5110.02610.6631.38
T25A01TXXX-1250.01790.4550.02390.6071.12
T26A01TXXX-1260.01590.4040.02190.5560.90
T27A01TXXX-1270.01420.3610.02020.5130.73
T28A01TXXX-1280.01260.3200.01860.4720.59
T29A01TXXX-1290.01130.2870.01730.4390.49

Please Note: For detailed specifications including breakdown voltage and other technical parameters, please request a specification sheet. Contact our Sales Department for additional constructions and custom requirements. RoHS Compliant.
