Triple Insulated

FEP .002"/Layer

FEP .002"/Layer

Product Information

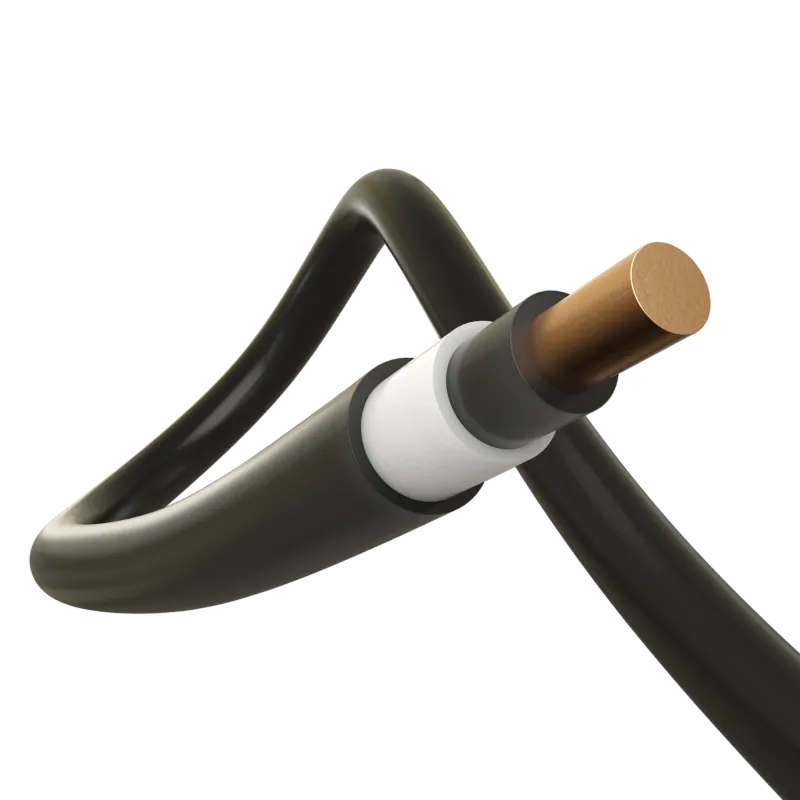

FEP insulated wire with .002"/layer construction provides excellent chemical resistance and superior electrical properties. This triple-insulated wire is specifically engineered for AC/DC adapters and medical/dental applications requiring reliable insulation and performance.

Wire Specifications

CONDUCTOR
NOMINAL O.D.
T10A37FXXX-210 (37/26)0.10702.7180.11903.02330.19
T12A19FXXX-212 (19/25)0.08622.1890.09822.49419.97
T14A19FXXX-214 (19/27)0.06791.7250.07992.02913.07
T16A01FXXX-2160.05081.2900.06281.5958.81
T16A19FXXX-216 (19/29)0.05391.3690.06591.6748.31
T18A01FXXX-2180.04031.0240.05231.3285.75
T18A19FXXX-218 (19/30)0.04761.2090.05961.5146.83
T20A01FXXX-2200.03200.8130.04401.1183.77
T20A19FXXX-220 (19/32)0.03850.9780.05051.2834.55
T22A01FXXX-2220.02530.6430.03730.9472.50

Please Note: RoHS Compliant. For detailed specifications including breakdown voltage and other technical parameters, please request a specification sheet. Contact our Sales Department for additional constructions and custom requirements.
