FEP .003"/Layer

Speak to an Engineer (970) 351-6100 option 3

Product Information

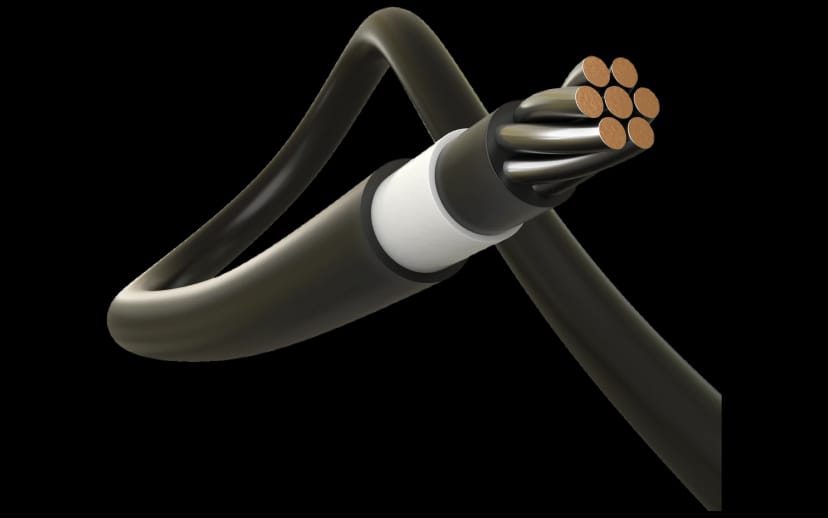

FEP insulated wire with .003"/layer construction provides excellent chemical resistance and superior electrical properties. This triple-insulated wire is specifically engineered for power supply and transformer applications requiring enhanced insulation and reliable performance.

Wire Specifications

		Conductor		Nominal O.D.

T10A37FXXX-3	10(37/26)	0.1070	2.718	0.1250	3.175	32.01
T12A19FXXX-3	12(19/25)	0.0862	2.189	0.1042	2.647	21.37
T14A19FXXX-3	14(19/27)	0.0679	1.725	0.0859	2.182	13.88
T16A01FXXX-3	16	0.0508	1.290	0.0688	1.748	9.42
T16A19FXXX-3	16(19/29)	0.0539	1.369	0.0719	1.826	9.19
T18A01FXXX-3	18	0.0403	1.024	0.0583	1.481	6.25
T18A19FXXX-3	18(19/30)	0.0476	1.209	0.0656	1.666	7.40
T20A01FXXX-3	20	0.0320	0.813	0.0500	1.270	4.20
T20A19FXXX-3	20(19/32)	0.0385	0.978	0.0565	1.435	5.03
T22A01FXXX-3	22	0.0253	0.643	0.0433	1.100	2.87

Please Note: RoHS Compliant. For detailed specifications including breakdown voltage and other technical parameters, please request a specification sheet. Contact our Sales Department for additional constructions and custom requirements.
