PFA .0015"/Layer

Speak to an Engineer (970) 351-6100 option 3

Product Information

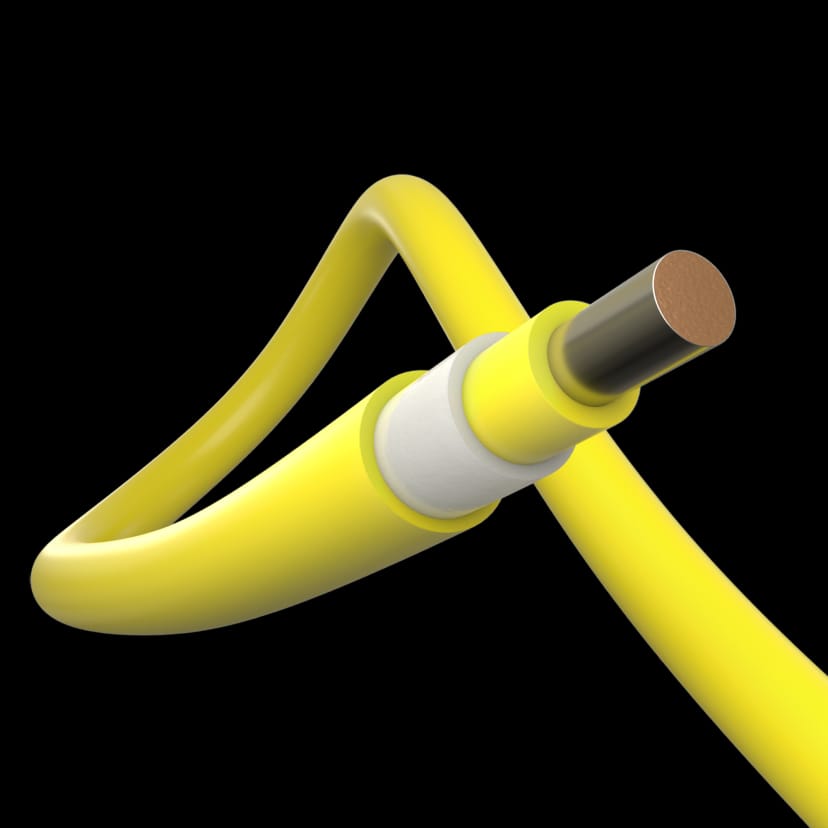

Our PFA .0015"/LAYER Triple Insulated Wire combines exceptional electrical properties with superior chemical resistance. The PFA insulation provides excellent thermal stability and dielectric strength, making it ideal for high-temperature applications in transformers and power supplies.

Wire Specifications

		Conductor		Nominal O.D.

T16A01PXXX-1.5	16	0.0508	1.290	0.0598	1.519	8.56
T17A01PXXX-1.5	17	0.0453	1.151	0.0543	1.379	6.88
T18A01PXXX-1.5	18	0.0403	1.024	0.0493	1.252	5.52
T19A01PXXX-1.5	19	0.0359	0.912	0.0449	1.140	4.45
T20A01PXXX-1.5	20	0.0320	0.813	0.0410	1.041	3.58
T21A01PXXX-1.5	21	0.0285	0.724	0.0375	0.953	2.91
T22A01PXXX-1.5	22	0.0253	0.643	0.0343	0.871	2.34
T23A01PXXX-1.5	23	0.0226	0.574	0.0316	0.803	1.92
T24A01PXXX-1.5	24	0.0201	0.511	0.0291	0.739	1.55
T25A01PXXX-1.5	25	0.0179	0.455	0.0269	0.683	1.27
